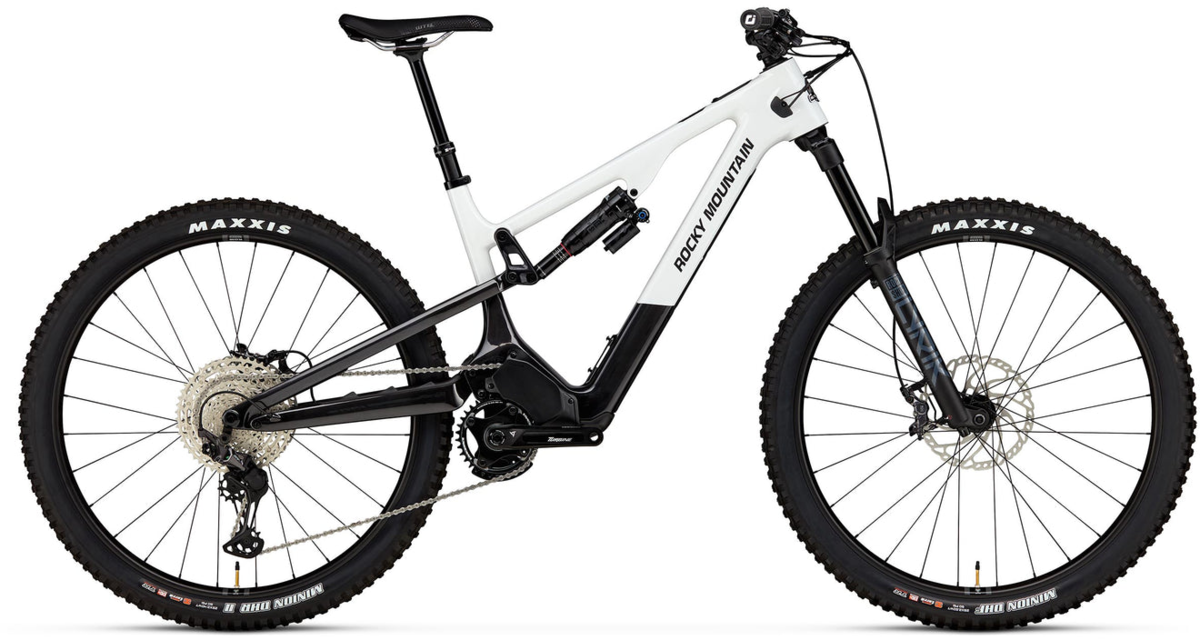

Rocky Mountain Instinct Powerplay SL Carbon 50
$7,999.00
Details
The Instinct Powerplay SL Carbon packs a punch in a lightweight package. Powered by the all-new Dyname S4 Lite drive system, this bike rides like a trail bike with the power to explore further than ever before. With adjustable geometry, refined suspension kinematics, and MX compatibility, the Carbon Instinct Powerplay SL delivers unreal levels of playfulness and agility, lap after lap… after lap.
Wheel size:
- Size X-Small: 27.5-inch
- Sizes Small – X-Large: 29-inch
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 566 | 598 | 626 | 658 |
| Head Tube Angle (deg) | 64 | 64 | 64 | 64 |
| Head Tube Length (mm) | 105 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 77.5 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 | 440 | 450 | 450 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 |
| Reach (mm) | 430 | 455 | 480 | 510 |
| Stack (mm) | 614 | 618 | 632 | 641 |
| Standover Height (mm) | 790 | 813 | 813 | 813 |
| Wheelbase (mm) | 1203 | 1230 | 1272 | 1306 |
| X-Small | 147.5 - 157.5 cm / 4'7" - 52" |
|---|---|
| Small | 152.5 - 167 cm / 5'0" - 5'6" |
| Medium | 162.5 - 177.5 cm / 5'4" - 5'10" |
| Large | 172.5 - 188 cm / 5'8" - 6'2" |
| X-Large | 183 - 198 cm / 6'0" - 6'6" |
Specs
| Frame | SMOOTHWALL™ Carbon | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | RockShox Lyrik Select 150mm | Charger RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset |
| Rear Shock | SM-XL: Rock Shox Super Deluxe Select+ | 230x57.5mm | XS: Rock Shox Deluxe Ultimate | 210x52.5mm | Sealed Bearing Eyelet | 25x8mm F Hardware | Size-Specific tune in FAQ |
| Tires | Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready | Tubeless Set Up | Sealant Incl |
| Brakes | Shimano XT Trail 4 Piston | Metal Pads |
| Rims | WTB KOM Trail i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl |
| Crankset | Race Face Turbine Cinch | 34T Ring | 30mm Spindle | XS - XL = 165mm |
| Bottom Bracket | Race Face BB92 30mm |
| Shifters | Shimano XT |
| Cassette/Freewheel | Shimano Deore 10-51T 12spd |
| Rear Derailleur | Shimano XT |
| Headset | FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
| Handlebars | Rocky Mountain AM | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Chain | Shimano M6100 |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm |
| Seatpost | X Fusion Manic Composite 30.9mm |XS - SM = 125mm | MD = 150mm | LG = 170mm | XL = 200mm |
| Saddle | WTB Volt Fusion Form 142 | Cromoly Rails |
| Motor | Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 550w Max Power | 65Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada |
| Battery | 480 Wh Removable Integrated Li-Ion |
| Controller/Display | Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
| Charger | Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector |
| Hubs | Front Hub: Novatec D791SB Sealed Boost 15mm/Rear Hub: Novatec MTB SL Pro Boost 148mm |
| Spokes | DT Swiss Competition 2.0/1.8/2.0 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Pour Some Sugar on Me/UD Carbon/Ziggy Stardust / Large / 29-inch | 770416001266 | B0412LG2 | 210000007683 |
